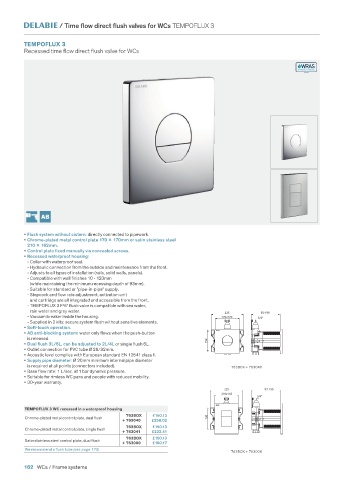

Page 164 - Water_Controls_for_Healthcare

/ Time flow direct flush valves for WCs TEMPOFLUX 3

TEMPOFLUX 3
Recessed time flow direct flush valve for WCs

• Flush system without cistern: directly connected to pipework.
• Chrome-plated metal control plate 170 170mm or satin stainless steel
210 162mm.
• Control plate fixed manually via concealed screws.
• Recessed waterproof housing:
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm
(while maintaining the minimum recessing depth of 93mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcock and flow rate adjustment, activation unit
and cartridge are all integrated and accessible from the front.
- TEMPOFLUX 3 F¾" flush valve is compatible with sea water,
rain water and grey water. 225 93-190
- Vacuum breaker inside the housing. 170x170 3/4"
- Supplied in 2 kits: secure system flush without sensitive elements.
• Soft-touch operation.
• AB anti-blocking system: water only flows when the push-button
is released.
• Dual flush 3L/6L, can be adjusted to 2L/4L or single flush 6L. 150
• Outlet connection for PVC tube Ø 26/32mm.
• Acoustic level complies with European standard EN 12541 class II.
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
is required at all points (connectors included). 763BOX + 763040
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
• Suitable for rimless WC pans and people with reduced mobility.
• 30-year warranty.
225 93-190
210x162
3/4"
TEMPOFLUX 3 WC recessed in a waterproof housing
763BOX £150.13
Chrome-plated metal control plate, dual flush 150
+ 763040 £256.02
763BOX £150.13
Chrome-plated metal control plate, single flush
+ 763041 £232.41
763BOX £150.13
Satin stainless steel control plate, dual flush
+ 763000 £180.17
We recommend a flush tube (see page 170)
763BOX + 763000
