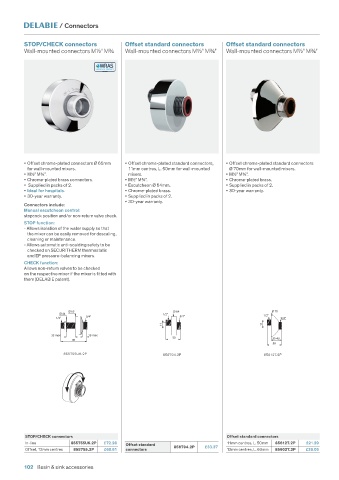

Page 104 - Water_Controls_for_Healthcare

/ Connectors

STOP/CHECK connectors Offset standard connectors Offset standard connectors
Wall-mounted connectors M½" M¾ Wall-mounted connectors M½" M¾" Wall-mounted connectors M½" M¾"

• Offset chrome-plated connectors Ø 65mm • Offset chrome-plated standard connectors, • Offset chrome-plated standard connectors
for wall-mounted mixers. 11mm centres, L. 50mm for wall-mounted Ø 70mm for wall-mounted mixers.
• M½" M¾". mixers. • M½" M¾".
• Chrome-plated brass connectors. • M½" M¾". • Chrome-plated brass.
• Supplied in packs of 2. • Escutcheon Ø 64mm. • Supplied in packs of 2.
• Ideal for hospitals. • Chrome-plated brass. • 30-year warranty.
• 30-year warranty. • Supplied in packs of 2.
• 30-year warranty.
Connectors include:
Manual escutcheon control:
stopcock position and/or non-return valve check.
STOP function:
- Allows isolation of the water supply so that
the mixer can be easily removed for descaling,
cleaning or maintenance.
- Allows automatic anti-scalding safety to be
checked on SECURITHERM thermostatic
and EP pressure-balancing mixers.
CHECK function:
Allows non-return valves to be checked
on the respective mixer if the mixer is fitted with
them (DELABIE patent).

Ø 65 Ø 64 Ø 70
Ø 44 1/2" 1/2"
1/2" 3/4" 3/4" 3/4"
11 11
35 max 15 max
50 35-40
90
50
855755UK.2P 856794.2P 856127.2P

STOP/CHECK connectors Offset standard connectors
In-line 855755UK.2P £72.28 Offset standard 11mm centres, L. 50mm 856127.2P £21.29
Offset, 12mm centres 855755.2P £60.81 connectors 856794.2P £33.37 12mm centres, L. 60mm 856027.2P £38.05

102 Basin & sink accessories
