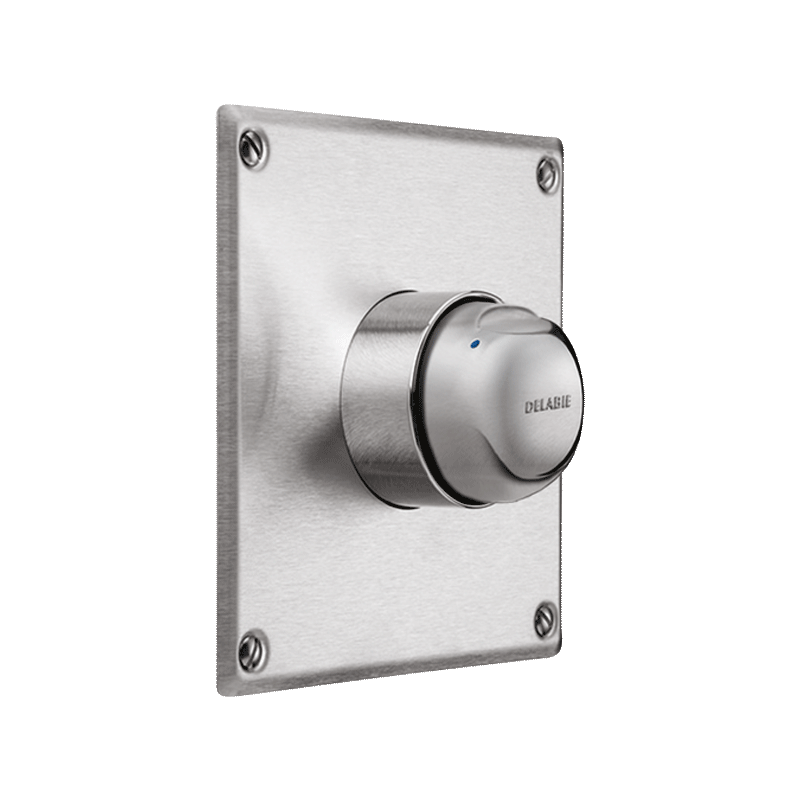

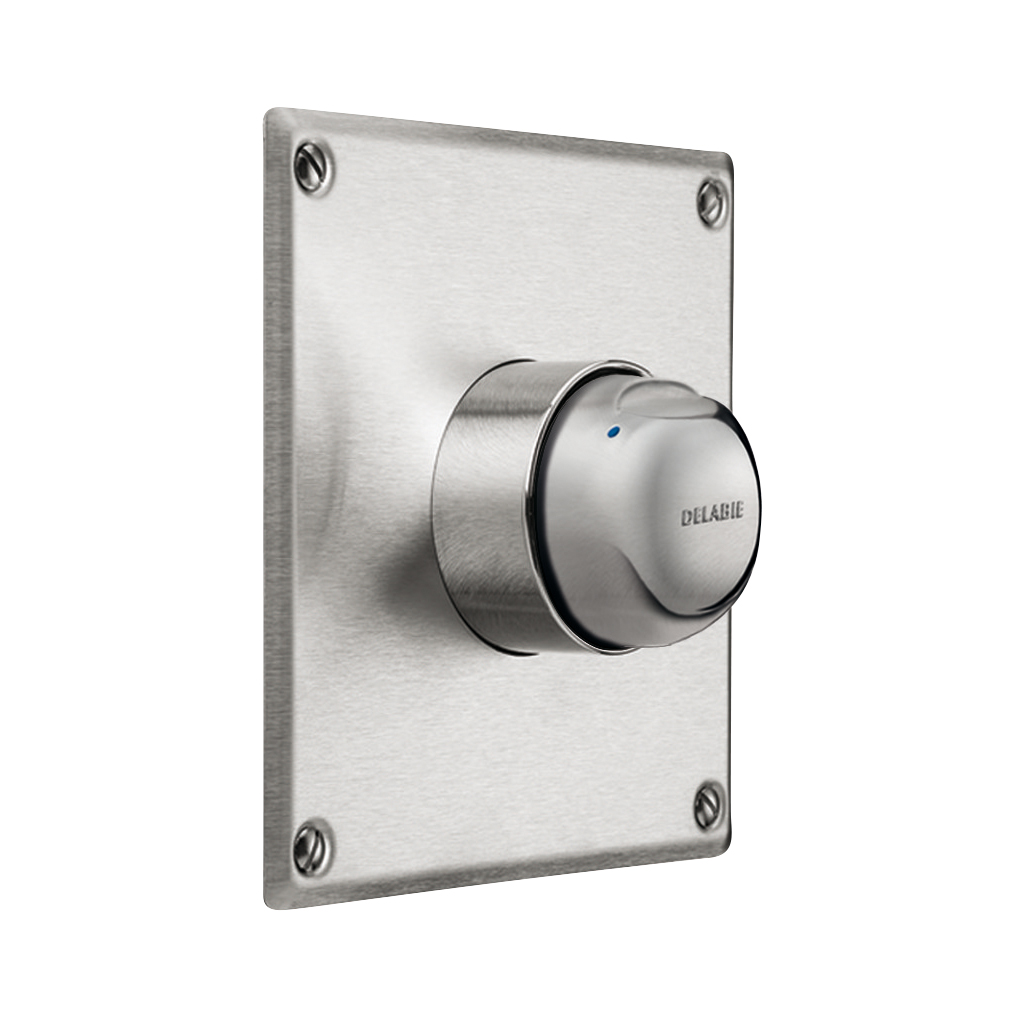

TEMPOMIX shower mixer - lead-free

Ref. 790425LF
Single control time flow, lead-free
See variants See variants
TEMPOMIX shower mixer - lead-free

Presentation

DESCRIPTION

TEMPOMIX shower mixer - lead-free

Ref. 790425LF

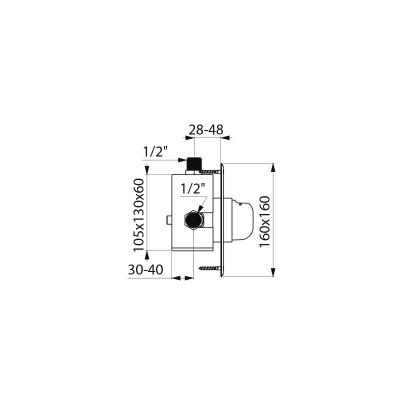

Recessed time flow shower mixer:
Stainless-steel wall plate 160 x 160.
Standard recessed waterproof housing.
Recessing depth adjustable from 28 to 48 mm.
TEMPOMIX 3/4" single control shower mixer.
Ligature-resistant collar.
Temperature control and operation via the control.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 12 lpm at 3 bar.
M1/2" connectors for Ø 15mm copper tails.
Integrated non-return valves and filters.
Chrome-plated metal control. Lead-free.
30-year warranty.

This sanitary ware model is not supplied with recessed waterproof housing, the installer must ensure the impermeability of recessed housing as well as draining any potential leaks and condensation (see installation guide).

ADVANTAGES

Sans plomb

Lead-free

Anti-vandalisme

Installation recessed in the wall

Endurance - Fiabilité

System tested to over 500,000 operations

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX shower mixer - lead-free

Ref. 790425LF
Connector M1/2'' Ø 15mm
Height 160 mm
Width 160 mm
Flow rate 12 lpm
Warranty 30-Year
TEMPOMIX shower mixer - lead-free
Ref. 790425LF

Downloads

DOWNLOADS

TEMPOMIX shower mixer - lead-free

Ref. 790425LF

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

790427 M1/2", stainless steel control plate 160 x 160mm, 12 lpm £340.47 excl. VAT
790425 M½" connection Ø 15mm for copper tails, st st plate 160x160mm, 12 lpm £340.47 excl. VAT
